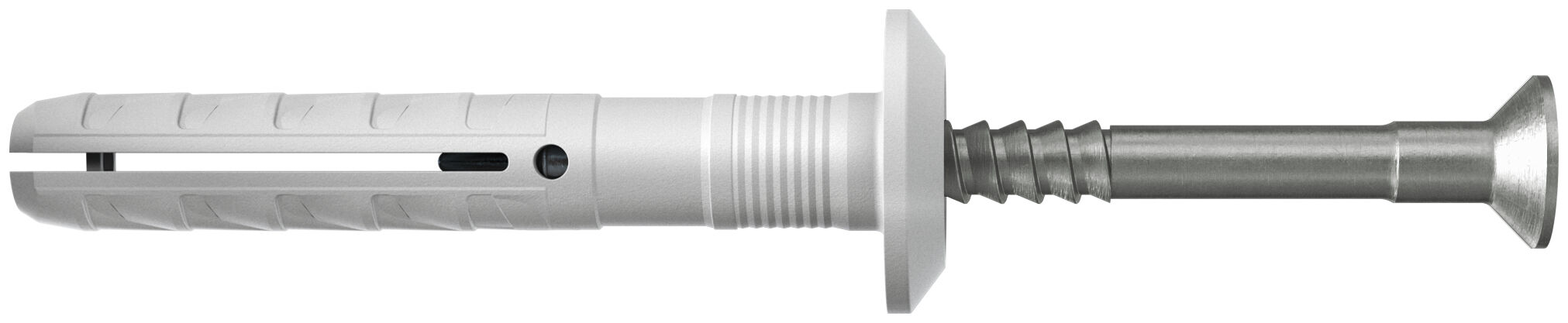

fischer Hammerfix N 5 x 30/5 P A2 (100)

Name: fischer Hammerfix N 5 x 30/5 P A2 (100)
Brand: fischer

Warianty produktu

Download of image data

Top Features

Fast Hammerset installation saves time: ideal for series installation.
Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.
Subsequent dismantling of the nail screw with a cross-slot recess is possible.
With stainless steel mushroom head nail screw.

The ha mmer-in plug with stainless steel mushroom head nail screw for simple, fast and economic installation.

Advantages

Time and money savings thanks to fast hammerset installation. This enables cost-effective series installations.
Easy installation thanks to integrated hammer-in stop. This avoids the premature expansion of the plug.
Increased flexibility due to subsequent dismounting. The thread of the nail screw in conjunction with the cross-slot recess allows the screw to be screwed out.
Diverse usage possibilities thanks to the large assortment in different diameters and usable lengths.

The fischer Hammerfix N-P with mushroom head consists of a high-quality nylon plug and a nail screw made of A2 stainless steel. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-P with mushroom head is ideal for fixing of thin components and components with slots, especially in the viewing area (suitable for outdoor use).

Functionality

Suitable for push-through installation.
When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.

Mounting Strip 1 Picture

1 / 4

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	30 mm
Min. drill hole depth for through fixings ( h₂ )	45 mm
Max. fixture thickness ( t _fix )	5 mm
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209959091
