REINFORCE-FIX

The REINFORCE-FIX module offers structural strengthening solutions for flexure and shear in rectangular reinforced concrete beams, using CFRP-Laminates and CF-Fabrics according to ACI PRC-440.2-23 design guidelines

Advantages:

Parametric design allows flexible input adjustments with real-time illustration on the 3D-Model.
Interactive utilisation bar with immediate result display of strengthening in flexure, shear or a combination of both.
A comprehensible and transparent reporting including all calculation steps and proofs with internal stress/strain diagrams.

Go to REINFORCE-FIX

Strengthening options

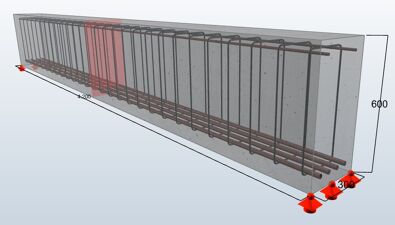

Unstrengthened

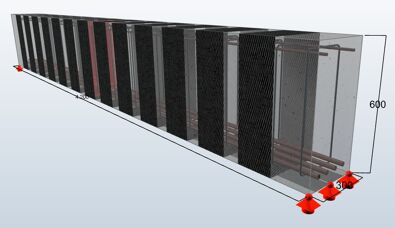

Flexural and shear strengthening

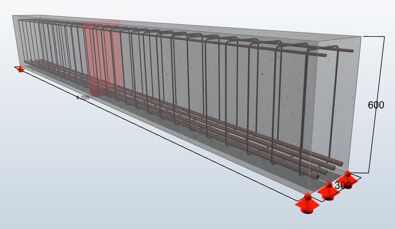

Flexural strengthening

The ability to choose the type of strengthening based on structural needs offers great flexibility in design and a relatively close visualisation of the strengthening in reality.

The current module offers strengthening solutions for rectangular beams using the ACI PRC-440.2-23 design guidelines. Additional module packages under development will enable a wider range of applications incorporating the fischer C-Fiber Force Strengthening system, expanding its scope and providing safe and reliable support for users in their projects.

Technical documentation available

REINFORCE-FIX allows you to download the complete technical documentation for your project:

Detailed design specifications with all materials included
Complete calculations with clear, step-by-step explanations for full transparency
Ultimate Limit State (ULS) and Serviceability Limit State (SLS) verifications
Dynamic stress-strain diagrams for better understanding
A concise summary of results for quick reference
