fischer Brass fixing PA 4 M8/25 K SB-card

Name: fischer Brass fixing PA 4 M8/25 K SB-card
Brand: fischer

Product variants

Download of image data

Top Features

Ideal for thin panel building materials due to low anchorage depths.
No rotation due to special surface structure.
High flexibility due to using conventional metric screws.

The brass fixing for thin panel building materials and solid building materials.

Advantages

The short brass fixing PA 4 only requires a very low anchorage depth and is therefore the solution for thin board building materials.
The special surface structure of the PA 4 prevents the fixing from rotating in the drill hole. This provides increased installation safety.
The internal thread allows for the use of standard metric screws and enables the ideal adaptation to suit the intended use.

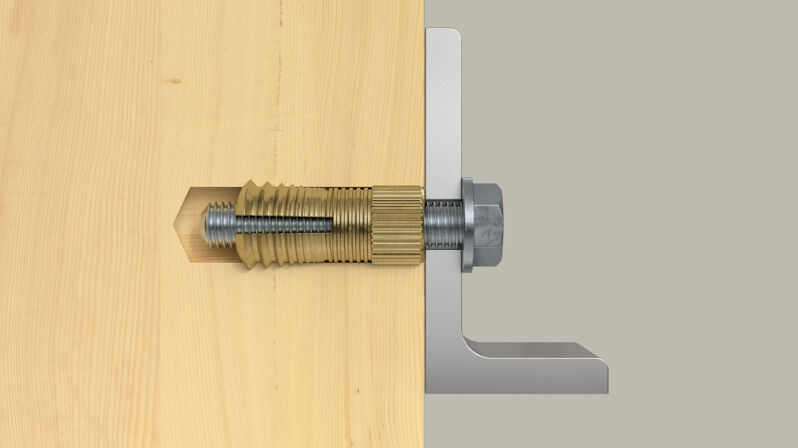

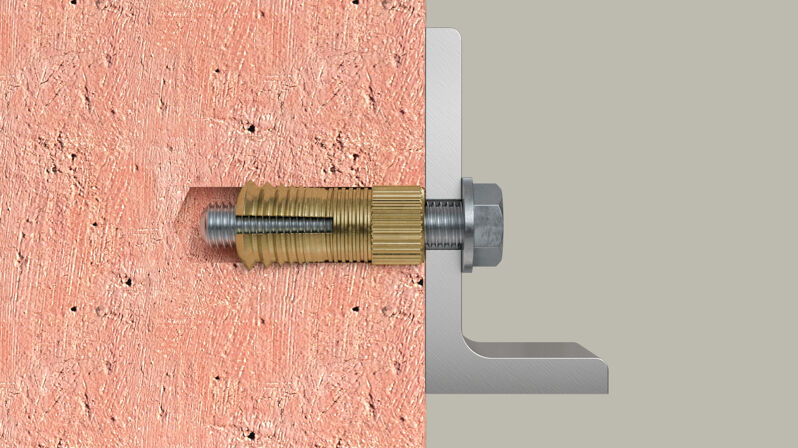

The fischer brass fixing PA 4 is a special fixing for fastening metric screws in thin panel building materials. The brass fixing is set in the pre-positioned installation. When driving in the screw, the plug expands and anchors itself in the building material. The fischer brass fixing PA 4 is ideal for fixing handles, angle brackets, or lamps in wood panel materials, plastic boards, and also in concrete, solid brick, and solid sand-lime brick.

Drill diameter ( d₀ )	10 mm
Min. drill hole depth ( h₁ )	25 mm
Anchor length ( l )	25 mm
Thread ( M )	M8
Bolt penetration ( s )	25 mm
Min. effect. anchorage depth ( h_ef )	25 mm

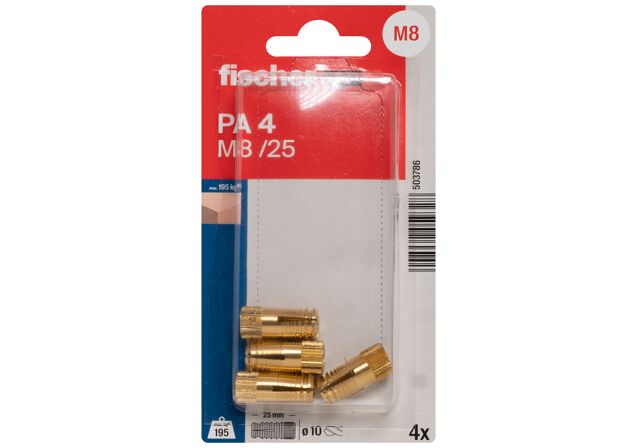

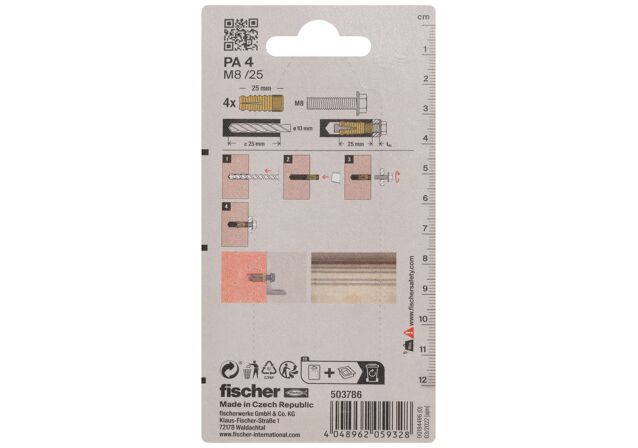

Contents	4 x Brass fixing PA 4 M8/25
Packaging	Blister card
Amount	4 pcs
GTIN (EAN-Code)	4048962059328
