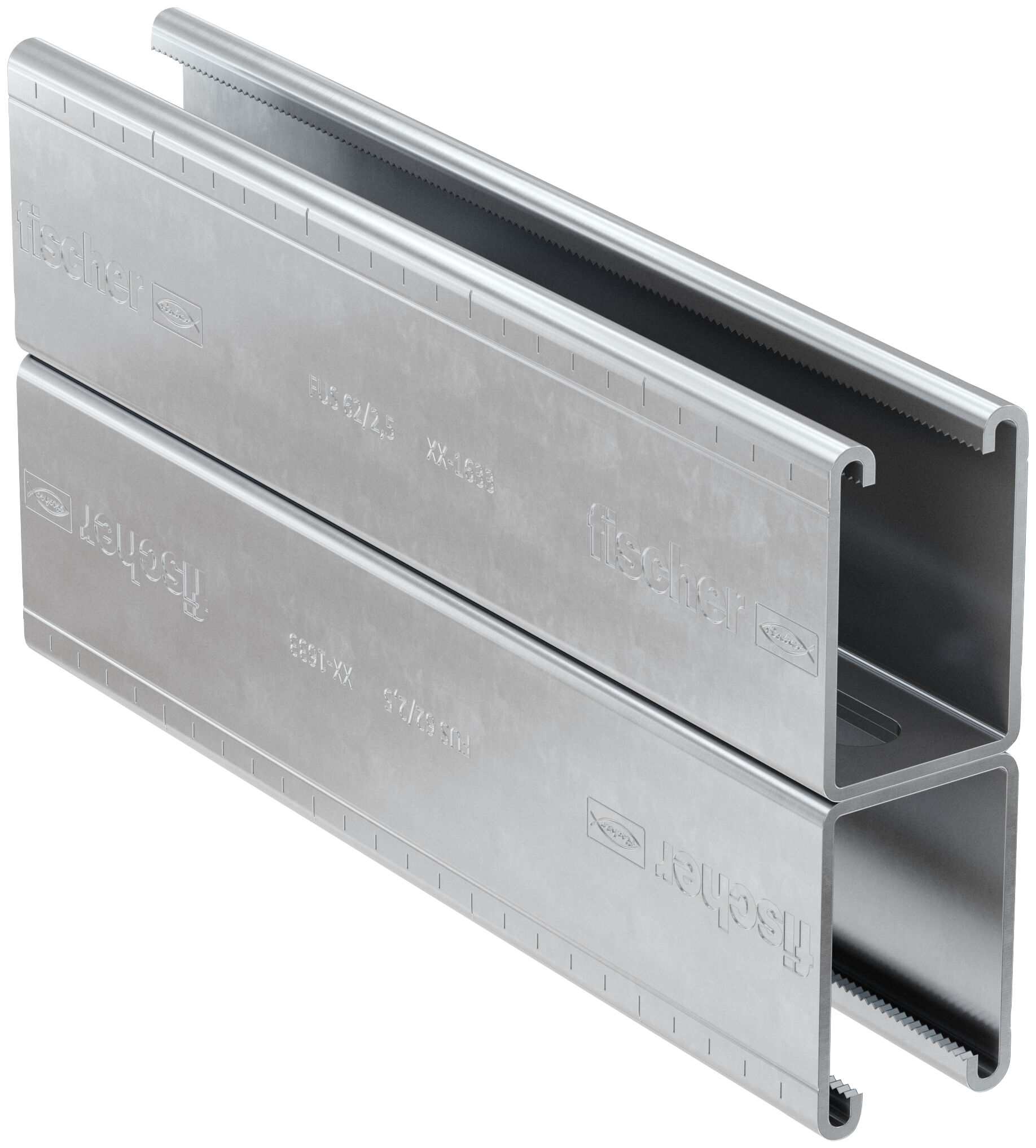

fischer Channel FUS 62D/2.5 - 6 m

Name: fischer Channel FUS 62D/2.5 - 6 m
Brand: fischer

Product variants

Download of image data

Top Features

Sendzimir galvanised, min. 15 μm
Scaling on the mounting rails.
Long slots for greater flexibility during installation.
Welded double rail.

Art.-Nr. 505551
FEC 62 B
Art.-Nr. 533742
PSF 124
Art.-Nr. 535268
PFFF 4
Art.-Nr. 559763
FCN Clix M 10
Art.-Nr. 533743
PFUF OC
Art.-Nr. 533739
PFCN 41
Art.-Nr. 504315
FCA 62/2.5 - 1,000

The universal and complete mounting channel system for a wide range of applications.

Advantages

The basic channel geometry allows the usage of the complete extensive range of accessories.
The stamped serration in the channel give the sliding nuts a secure hold for high shear loads, e.g. for vertical installation.
Different channel wall thicknesses allow economical choices for installation.
The scale on the mounting channels simplifies the cutting and positioning of the fixtures during the installation.

The high-quality fischer mounting channel FUS is a C-profile mounting channel for creating secure horizontal and vertical installations. It enables the fast and efficient fixing of pipelines and supporting structures. The channel geometry guarantees use of the comprehensive range of fischer accessories. The pronounced teeth in the channel gives the channel nut a secure hold to bear vertical installation and high shear loads. Different channel wall thicknesses allow for an economical installation of the channels. The scale on the mounting channels simplifies the cutting and positioning of components. Long slots in the channel allow for greater flexibility when it comes to installing the fixtures.

Properties

Material: pre-galvanised steel S250GD+Z275 (material no. 1.0242) acc. to DIN EN 10346

Length ( L )	6.000 mm
Profile weight	6,55 kg/m
ETA-approval
Thickness ( S )	2,5 mm
Channel cross section	8,33 cm²
Moment of inertia ( l_y )	108,14 cm⁴
Moment of inertia ( l_z )	25,7 cm⁴
Section modulus ( W_y )	17,44 cm³
Section modulus ( W_z )	12,53 cm³
Max. recommended static load for 1m length ( F_rec )	13,11 kN
Max. recommended static load for 2m length ( F_rec )	6,5 kN
Max. recommended static load for 3m length ( F_rec )	4,28 kN
Amount	1 pcs
GTIN (EAN-Code)	4048962063042
