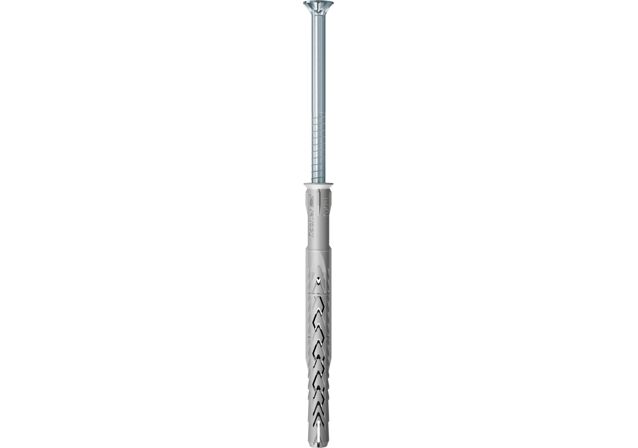

Frame fixing SXRL with countersunk head screw

The fischer frame fixing SXRL with up to three anchorage depths is approved for multiple fixings of non-structural systems in concrete, masonry and aerated concrete with the fischer countersunk screw. The SXRL 10 has also an approval for single-point fixing in concrete, the SXRL 10 and 14 for the stand-off installation of façades under a compression load. In perforated brick masonry, the two expansion zones of the plug apply force evenly; in aerated concrete and solid building materials, they unite to form one long expansion element. This ensures excellent load values. The extensive assortment with diameters of 8, 10 and 14 mm and anchor lengths of up to 360 mm enable diverse applications. The SXRL with the countersunk head screw is particularly recommended for fixing wood constructions.

Product variants

Download of image data

Product variants

Approvals / Test reports

60 Product variant (s)

Drill diameter

Anchor length

Min. drill hole depth for through fixings

Usable length at anchorage depth 50 mm

Usable length at anchorage depth 70 mm

Usable length at anchorage depth 90 mm

Legend = Permission Available— = Permission not Available

More results

Viewed 18 of 60 variant (s)

Advantages

The long expansion element with multiple anchorage depths of 50, 70 and 90 mm for SXRL 8 and SXRL 10 and 70 and 90 mm for SXRL 14 makes the SXRL an extremely versatile product.
Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole.
The approval for single-point fixing in cracked concrete makes the SXRL the designated specialist in concrete particularly for tasks such as the installation of awning roofs and outdoor railings compared to steel anchors.
When it is to be set deep, the longer ribs prevent the plug from turning during installation.
The SXRL 14 is additionally approved for applications that are subject to pressure and may be used for façade structures that are installed without wall bracket with a spacing.
The SXRL with effective lengths up to 290 mm provides the right plug for every application.

Applications

Façade, ceiling and roof substructures made of wood and metal
Facade substructures under compression load (e.g. distance installation without a wall bracket)
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Vertically perforated brick
Aerated concrete
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Thermal insulation blocks
Solid block made from lightweight and normal weight concrete
Solid brick
Solid sand-lime brick
Concrete ≥ C12/15

Suitable for:

Natural stone with dense structure
Solid panel made from gypsum

You can find detailed information on building materials in the registration document.

Approvals

ETA-07/0121
DoP No. 0329
Z-21.2-2092
21-009-1(2

Functionality

The SXRL is suitable for push-through installation.
In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones. The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force.
In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate.
Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer.

Mounting Strip 1 Picture

1 / 5

DIBt-approval	—
ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	60 mm
Min. drill hole depth for through fixings ( h₂ )	70 mm
Usable length at anchorage depth 50 mm ( t_fix )	10 mm
Usable length at anchorage depth 70 mm	—
Usable length at anchorage depth 90 mm	—
Drive	TX30
Contents	—
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962276862

DIBt-approval	—
ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	80 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Usable length at anchorage depth 50 mm ( t_fix )	30 mm
Usable length at anchorage depth 70 mm ( t_fix )	10 mm
Usable length at anchorage depth 90 mm	—
Drive	TX30
Contents	—
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962276879

DIBt-approval	—
ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	100 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Usable length at anchorage depth 50 mm ( t_fix )	50 mm
Usable length at anchorage depth 70 mm ( t_fix )	30 mm
Usable length at anchorage depth 90 mm ( t_fix )	10 mm
Drive	TX30
Contents	—
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962276886

DIBt-approval	—
ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	100 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Usable length at anchorage depth 50 mm ( t_fix )	50 mm
Usable length at anchorage depth 70 mm ( t_fix )	30 mm
Usable length at anchorage depth 90 mm ( t_fix )	10 mm
Drive	TX30
Contents	—
Packaging	—
Amount	1 pcs
GTIN (EAN-Code)	4048962314663

DIBt-approval	—
ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	120 mm
Min. drill hole depth for through fixings ( h₂ )	130 mm
Usable length at anchorage depth 50 mm ( t_fix )	70 mm
Usable length at anchorage depth 70 mm ( t_fix )	50 mm
Usable length at anchorage depth 90 mm ( t_fix )	30 mm
Drive	TX30
Contents	—
Packaging	Folding box
Amount	4 pcs
GTIN (EAN-Code)	4006209301685
